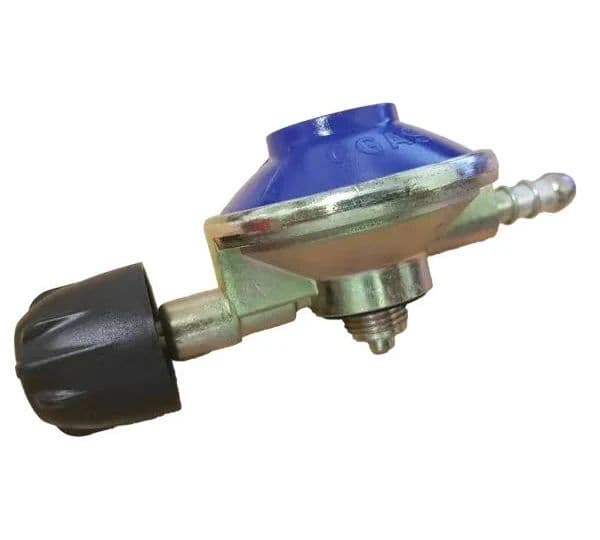

The Continental CGAS Butane Gas Regulator (Model C50-30) is a low-pressure screw-on gas regulator specifically designed to connect directly to standard Campingaz refillable cylinders (models 901, 904, and 907). It regulates gas down to a consistent 30mbar operating pressure with a maximum flow capacity of 1kg per hour, making it ideal for outdoor camping stoves, BBQs, and campervan setups.

Key Technical Specifications

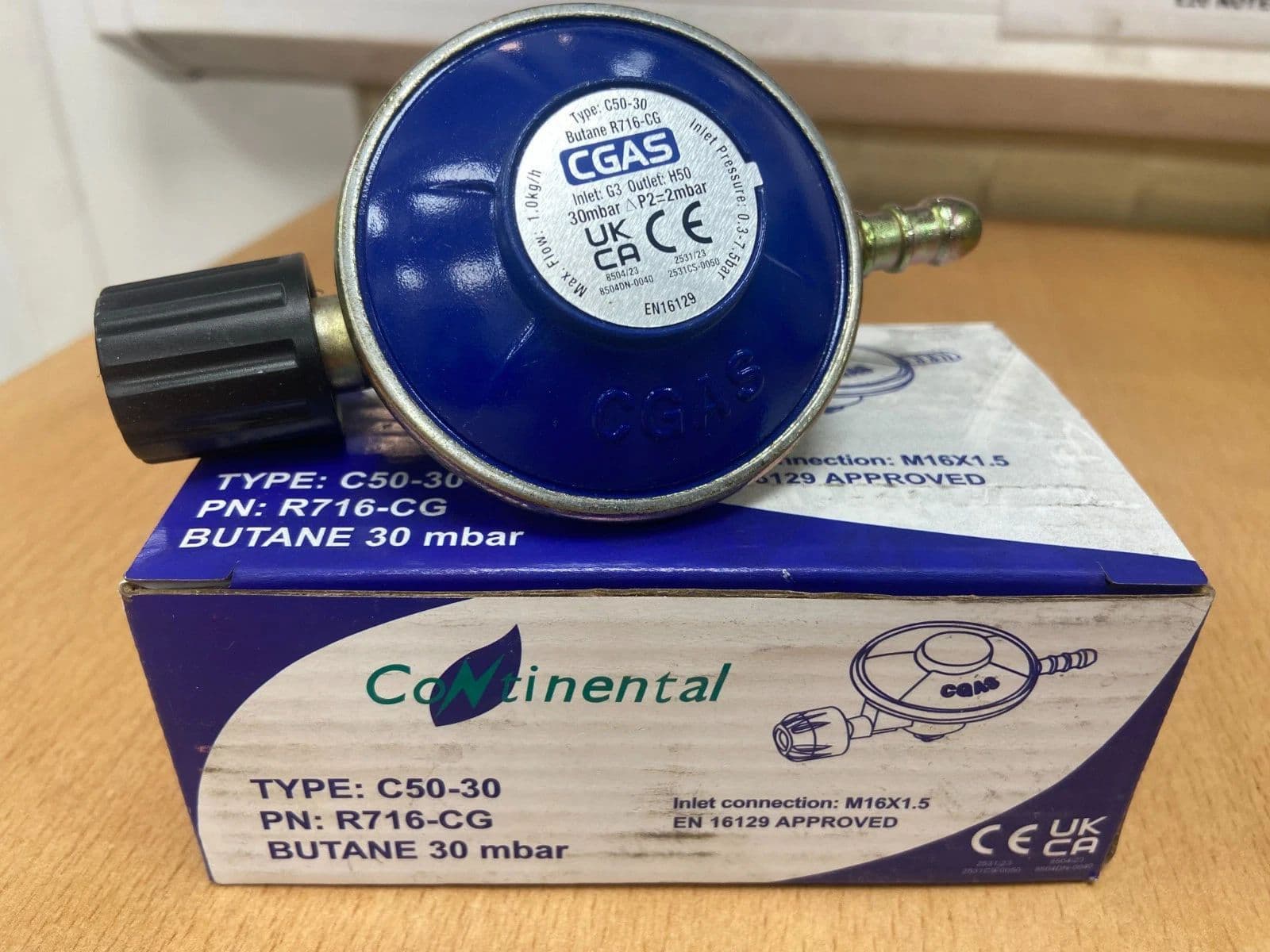

Brand/Manufacturer: Continental CGAS (Type R716-CG)

Model / Type: C50-30

Gas Type: Butane

Operating Pressure: 30mbar

Inlet Connection: M16 x 1.5mm internal thread (G3 standard) which screws directly into the top of Campingaz cylinders

Outlet Connection: Integrated 8mm ribbed nozzle (hose tail) designed to tightly grip standard 8mm high-pressure orange LPG hose

Flow Rate Capacity: 1.0 kg/h max flow

Safety Standard: Manufactured and approved to the standard EN16129

Important Safety & Usage Tips

Compatibility Check: This regulator uses an M16 screw-in thread. It will not fit standard UK Calor gas cylinders (which use a clip-on or 21.8mm Left-Hand thread) or disposable threaded gas canisters.

Leak Testing: Always leak-test the hose joints after installation using a dedicated leak detector spray or a soapy water solution. Never use an open flame to check for gas leaks.

Positioning: Ensure your Campingaz cylinder remains strictly in the upright position during use to avoid liquid gas escaping into the regulator.
